NECO DC160 Tubular Motor & Fire Control Panel

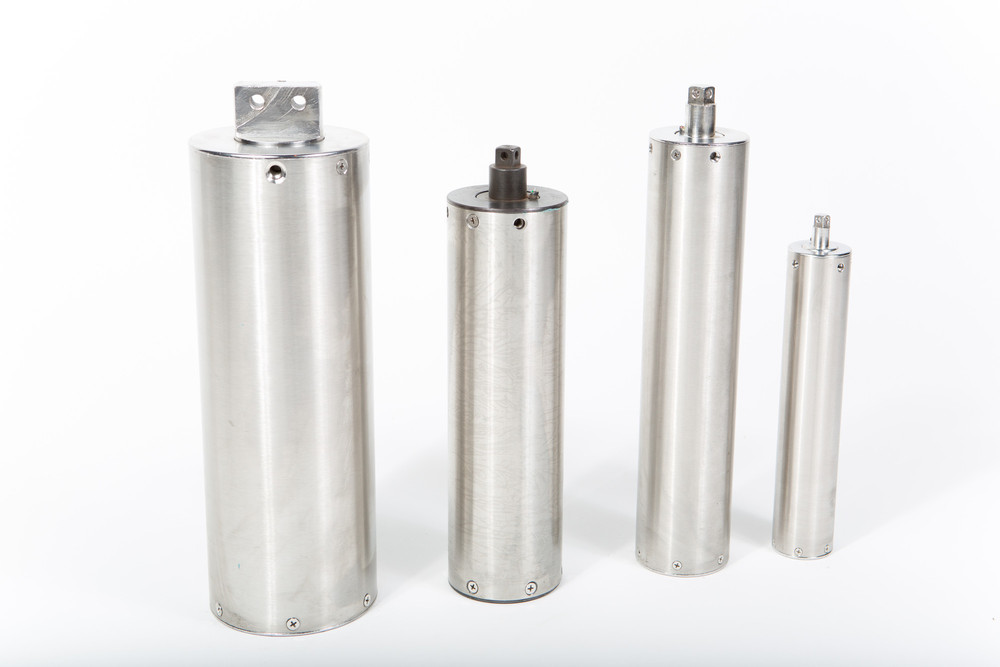

The unique innovative design NECO DC Tubular Motors are 24v DC motors.
The DC Tubular Motors are sold with the fire control panel but, they may be purchased separately.
The Fire Control Panel is designed using state of the art manufacturing technology and the highest quality components. It is only compatible with the NECO DC Tubular Motors.
The DC Motors have been tested and passed by Warrington Fire Research. The test was carried out to allow companies with an existing fire certificate for Fire & Smoke Curtains and Tubular Motor Fire Shutters to make the change from their existing tube motor to The DC Tubular Motor.
Further advice is available on request.
To place an order for only the motor please contact the Sales Team.
Features of the NECO DC Tubular Motor:
•Lifting capacity - up to 800kg
•Electronic Limits
•Range of sizes available
•Available with gravity failsafe (DC55G/ DC80G/ DC95G Tubular Motors)
Features of the Fire Control Panel:
•Battery back-up to 96hrs
•Audio-visual alarm
•Electronic limits
•Split drop delay
•Delay before descent
•Double-knock fire alarm activation
•Deadman or auto-operation
•Emergency retract (via key or rocker switch)
•Auto-return after alarm reset
•Volt free fire alarm connection
•2 x zero-fifteen minute delayed timers
NECO DC160 Tubular Motor
Diameter 160mm
Motor Length 476mm
Lifting Capacity 800kg
NECO Fire Control Panel
Depth 100mm
Width 240mm
Height 320mm
NECO DC160 Tubular Motor
Voltage 24v
Current 14.6a
Running Time 30min
Torque 600nm
RPM 4.2rpm
NECO AV Fire Control Panel
Power Supply Main Power AC 200v + 10-15%
Back-up Power 50Hz + 1%
Working Environment Temperature -20C - +60C
Relative Humidity 95%
Atmosphere Pressure 85 - 106kpa
Material Metal
Weight 4.2kg
